Accu-Rock™ Rotary Table Units
ATS Systems is a distributor of Accu-Rock™ mill rotary tables, made for ATS Systems by Kitagawa, one of the premier manufacturers of machining equipment in Japan. They produce a line of exclusive equipment for ATS Systems, which we can offer you.
Accu-Rock™ rotary tables for milling give you extraordinary capabilities, and ATS Systems gives you extraordinary service with them. While so many other companies will only sell you equipment, we include personal consultation and installation by our trained technicians, including integration with your equipment and training of your staff.
We have multiple models of Accu-Rock™ rotary table you can choose from, each with their own strengths so your specific operation can be matched with the best rotary table for the application.

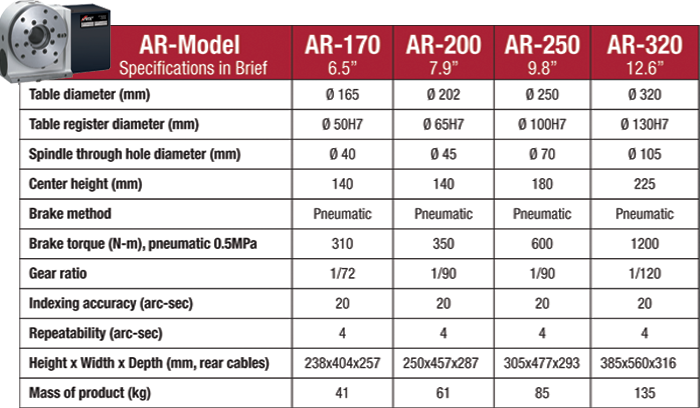

Accu-Rock™ rotary tables can be ordered with table diameters of 160, 200, 250 or 320mm, and spindle through-hole diameters of 40, 45, 70 or 105mm. All models are equipped with a pneumatic spindle brake and oversized worm wheels with crossroller bearings for years of reliable operation.
The system can be ordered for 4-axis operation, or can be ordered with 5-axis capabilities for tilting rotary cuts.
Accu-Rock™ CNC Milling Rotary Tables
Rotary tables only break while you are using them to make money; choose your provider carefully. Only ATS Systems offers:
ROTARY TABLES BUILT IN JAPAN’S LARGEST, MOST ADVANCED FACTORY
Made for ATS Systems
Built for your demanding applications: Oversize worm wheels, heavy duty brakes and crossroller bearings are standard on even the basic AR-model tables
Built to highest precision and quality standards.
ATS SYSTEMS’ EXCLUSIVE LOCAL SALES, SERVICE AND SUPPORT.
In shop pre-sale consultation – our full-time, regional managers (not part time representatives) can review your needs first hand.
Installation by our local, factory trained technicians (competitors do not have such resources) – includes integration to your machine tool and safety / maintenance training for your staff.
Lifetime support by our local field service staff and our full, central repair facility.

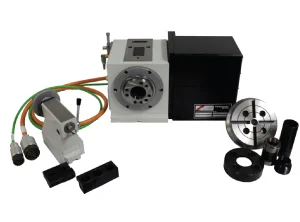

If you need more than just a rotary table, we can also offer you our RT-160 Job Shop Package. An Accu-Rock™ CNC rotary table is included, along with 4-axis rotation capabilities. The RT-160 package is compatible with 5C and 3J collets, but also comes with an adapter plate for use with an included T-slot faceplate and optional 3 or 4-jaw chuck. Additional options and extras can be added as well to suit your shop's individual needs.
This comprehensive rotary table package is perfect for the job shop that doesn't know what's coming next.
The Original Job Shop SMW Systems Package : RT-160
RT-160 FEATURES:
Heavy preloaded anti-friction bearing mounted spindle eliminates end-play, provides long, accurate, rigid life.
Power operated, high-torque brake provides rigidity to withstand heavy cuts, offset loads.
360,000 position indexing, 4 second repeatability.
Power-operated, built-in collet closer.
Collet adapter permits use of both 5C and 3J collets.
Removeable faceplate. A-6 spindle nose accomodates direct-chuck mounting without adapter plates.
Many Accessories and Options Available
Tailstocks and spindle-with-brake supports
Through-spindle hydraulic porting
Hydraulic or pneumatic actuators with drawbars
Collet chucks, jaw chucks, and mandrels
Please contact ATS to discuss other options
If you'd like to find out if the Accu-Rock™ rotary table is right for your shop, call us for your free consultation today! We'll send one of our regional managers straight to your shop for an in-person consultation. You'll be amazed at what the Accu-Rock™ rotary table system can do for you.
We're also available toll-free at 800-321-1833
