SOLIDPoint®

SOLIDPoint® - Mechanical zero-point technology


SOLIDPoint® 96/52 - Mechanical zero-point plates
ATS Part# ident-no. zero-point system dimensions zero-point system
27660201 660201 96 / 52 192 x 156 x 27 Ø 20 / 16
27660001 660001 96 192 x 156 x 27 Ø 20
27660003 660003 96 192 x 156 x 27 Ø 20
27660009 660009 96 192 x 192 x 27 Ø 20
27660205 660205 96 / 52 192 x 192 x 27 Ø 20 / 16
27660005 660005 96 192 x 192 x 27 Ø 20
27660011 660011 96 246 x 192 x 27 Ø 20
27660013 660013 96 246 x 192 x 27 Ø 20
27650002 650002 52 150 x 116 x 27 Ø 16
27650004 650004 52 150 x 116 x 27 Ø 16
27650006 650006 52 104 x 104 x 27 Ø 16
SOLIDPoint® 96/52 - 5-axis riser with mechanical zero-point technology
ATS Part# ident-no. zero-point system dimensions zero-point system
27661006 661006 96 192 x 156 x 60 Ø 20
27661010 661010 96 192 x 156 x 100 Ø 20
27661030 661030 96 / 52 192 x 156 x 60 Ø 20 / 16
27661040 661040 96 / 52 192 x 156 x 100 Ø 20 / 16
27651006 651006 52 150 x 116 x 60 Ø 16 / 20
27651010 651010 52 150 x 116 x 100 Ø 16 / 20
Adapter-plates 96/52
ATS Part# ident-no. zero-point system dimensions zero-point system
27659100 659100 96 / 52 150 x 126 x 27 Ø 16
SOLIDPoint® 96 round Mechanical zero-point technology
ATS Part# ident-no. zero-point system dimensions zero-point system
27660103 660103 96 Ø 246 x 27 Ø 20
27660101 660101 96 Ø 196 x 27 Ø 20
SOLIDPoint® 96/52 - Accessories
ATS Part# ident-no. Description diameter pack size
27662096 662096 Studs 20 1 pcs.
27652052 652052 Studs 16 1 pcs.
27662001 662001 Studs 20 1 set of 4 pcs.
27652002 652002 Studs 16 1 set of 4 pcs.
27669020 669020 Studs 20 1 set of 20 pcs.
SOLIDBolt - Mechanical zero-point technology

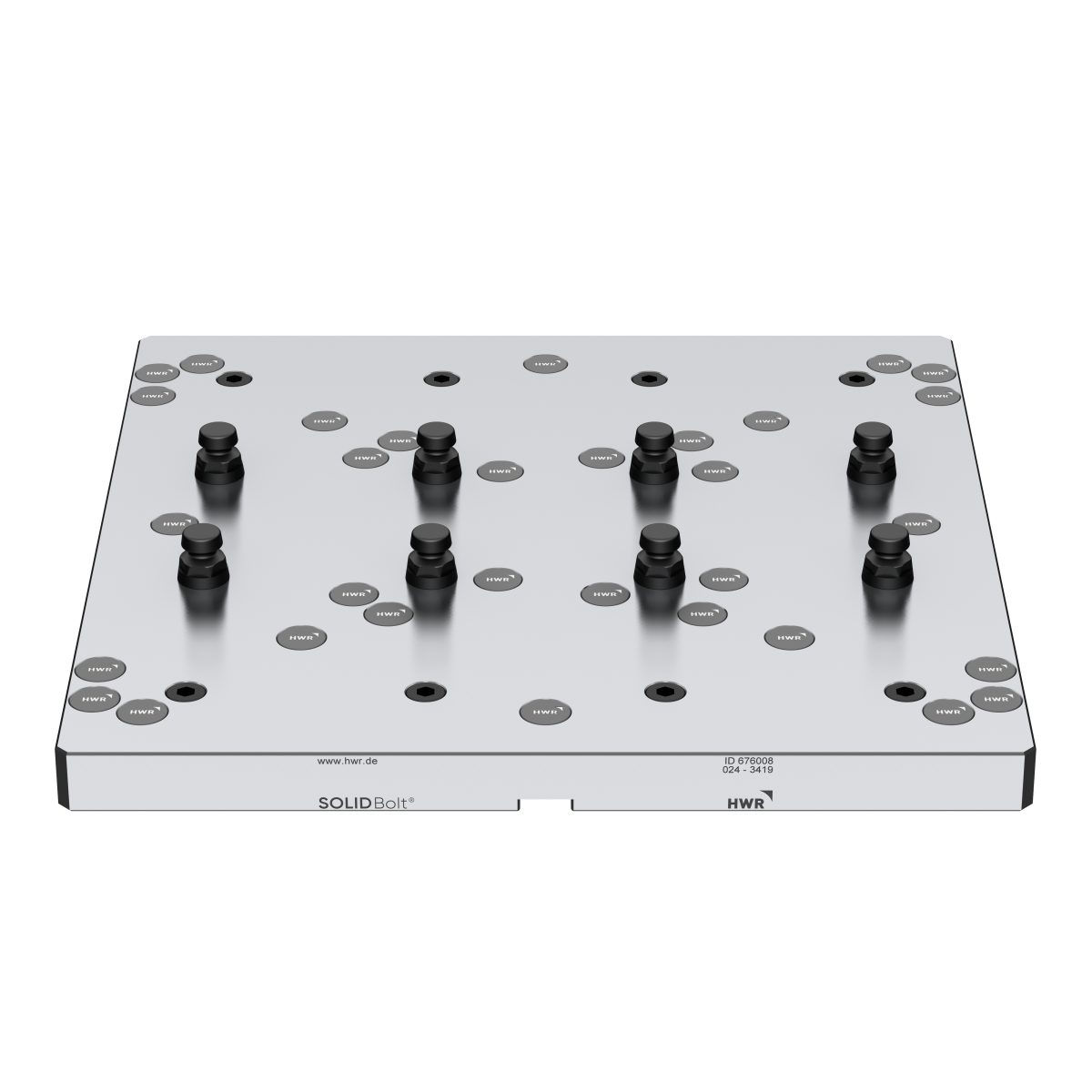

SOLIDBolt 4-fold base-plates
ATS Part# ident-no. zero-point system dimensions zero-point system
27676008 676008 SOLIDBolt 384 x 384 x 27 SOLIDBolt
37676003 676003 SOLIDBolt 384 x 384 x 27 SOLIDBolt
27676001 676001 SOLIDBolt 192 x 384 x 27 SOLIDBolt
27676007 676007 SOLIDBolt 192 x 192 x 27 SOLIDBolt
SOLIDBolt zero-point plates
ATS Part# ident-no. zero-point system dimensions zero-point system
27675050 675050 SOLIDBolt 150 x 150 x 50 SOLIDBolt
27675075 675075 SOLIDBolt 150 x 150 x 75 SOLIDBolt
27675150 675150 SOLIDBolt 150 x 150 x 50 SOLIDBolt
27675175 675175 SOLIDBolt 150 x 150 x 75 SOLIDBolt
SOLIDBolt Accessories
ATS Part# ident-no. Description diameter pack size
27677096 677096 Zero-point studs 20 1 pcs.
27677010 677010 Protective plugs aluminium 20 1 set of 4 pcs.
27677015 677015 Cover screw 20 1 set of 4 pcs.
27669020 669020 Cover plates 20 1 set of 20 pcs.
SOLIDGrip - 5-axis centering vice
SOLIDGrip 77 - jaw width 46 mm
ATS Part# ident-no. body length clamping range zero-point system
27681085-46 681085-46 102 0 - 85 52
27681120-46 681120-46 130 0 - 120 52

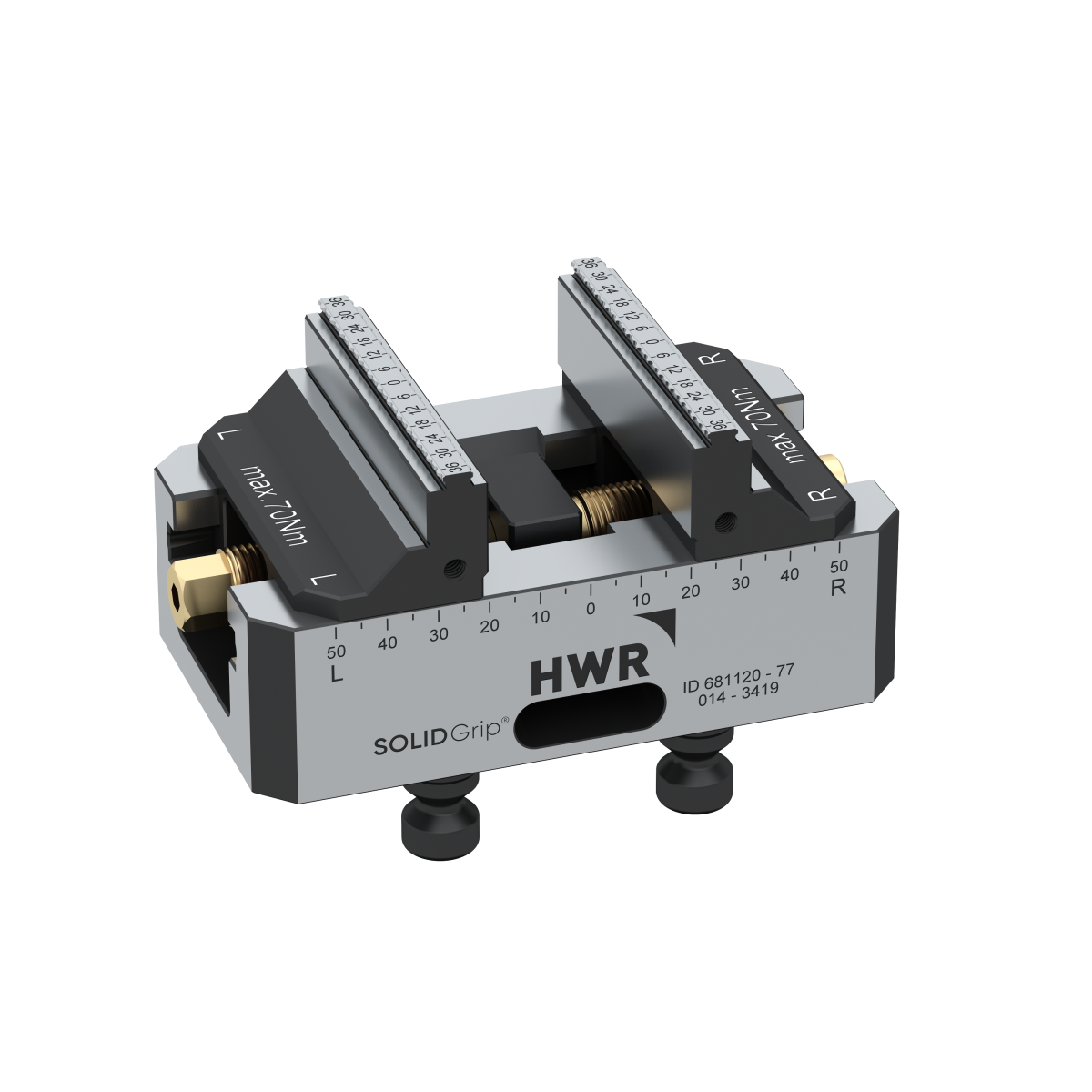

SOLIDGrip 77 - jaw width 77 mm
ATS Part# ident-no. body length clamping range zero-point system
27681085-77 681085-77 102 0 -85 52
27681120-77 681120-77 130 0 - 120 52
27681160-77 681160-77 170 0 - 160 52
27681200-77 681200-77 210 0 - 200 52
SOLIDGrip 125 - jaw width 77 mm
ATS Part# ident-no. body length clamping range zero-point system
27681155-77 681155-77 160 0 - 155 96
27681205-77 681205-77 210 0 - 205 96
SOLIDGrip 125 - jaw width 125 mm
ATS Part# ident-no. body length clamping range zero-point system
27681155-125 681155-125 160 0 - 155 96
27681205-125 681205-125 210 0 - 205 96
27681255-125 681255-125 260  0 - 255 96
27681305-125 681305-125 310 0 - 305 96
27681355-125 681355-125 360 0 - 355 96
SOLIDGrip - spare parts and accessories - jaws
ATS Part# ident-no. Description suitable for ident-no. jaw width
27681085-4620 681085-4620 jaws 681085-46 46
27681077-4620 681077-4620 jaws 681120-46 46
27681085-7720 681085-7720 jaws 681085-77 77
27681077-7720 681077-7720 jaws 681120-77 77
27681077-7720 681077-7720 jaws 681160-77 77
27681077-7720 681077-7720 jaws 681200-77 77
27681125-7720 681125-7720 jaws 681155-77 77
27681125-7720 681125-7720 jaws 681205-77 77
27681125-2520 681125-2520 jaws 681155-125 125
27681125-2520 681125-2520 jaws 681205-125 125
27681125-2520 681125-2520 jaws 681255-125 125
27681125-2520 681125-2520 jaws 681305-125 125
27681125-2520 681125-2520 jaws 681355-125 125
SOLIDGrip - spare parts and accessories - spindles
27681077-100 681077-100 spindle 681085-46 100
27681077-135 681077-135 spindle 681120-46 135
27681077-100 681077-100 spindle 681085-77 100
27681077-135 681077-135 spindle 681120-77 135
27681077-175 681077-175 spindle 681160-77 175
27681077-215 681077-215 spindle 681200-77 215
27681125-164 681125-164 spindle 681155-77 164
27681125-214 681125-214 spindle 681205-77 214
27681125-164 681125-164 spindle 681155-125 164
27681125-214 681125-214 spindle 681205-125 214
27681125-264 681125-264 spindle 681255-125 264
27681125-314 681125-314 spindle 681305-125 314
27681125-364 681125-364 spindle 681355-125 364
SOLIDChuck - 3-jaw manual chuck with SOLIDPoint® 96 connection
ATS Part# ident-no. type chuck diameter zero-point system
27684016 684016 FG16 160 96
SOLIDChuck - jaws
ATS Part# ident-no. type type clamping range
27684162 684162 FI16 soft 15 - 160
27684161 684161 FU16 hard 5 - 160
SOLIDStamp - Stamping device for making the form fitting
ATS Part# ident-no. version max. stamping width jaw type
27680245 680245 Standard 245 mm High End
