InoZet® Compensating 6-Jaw Chuck
In search of perfect roundness.
InoZet® Offers Maximum Flexibility, Significant Cost Advantages And Outstanding Turning Results Thanks To Its Technical Superiority.
With InoZet® Pendulum Bridges To A Compensating 6-Jaw Chuck
From the standard 3-jaw chuck to the highly flexible, compensating 6-jaw chuck! Conventional pendulum jaws are:
too inflexible
too elaborate
too expensive
The Innovative Clamping Solution By HWR
With InoZet® you can turn your existing 3-jaw chuck into a highly flexible, compensating 6-jaw chuck in no time at all.
Owing to the variable positioning of the clamping jaws on the pendulum segments you can cover the entire clamping range with one set of standard clamping jaws only for maximum flexibility.
You do not need countless pendulum clamping jaws or any special constructions – which leads to enormous cost savings.
InoZet® offers the following advantages:
Your 3-jaw chuck turns into a compensating 6-jaw chuck
One set of clamping jaws covers the entire clamping range of the chuck
For internal and external clamping
Ideal for processing deformation-sensitive components as well as out-of-round blanks and components deformed by thermal treatment
Can be retrofitted for all chuck sizes from diameters of 210 mm
The pendulum mechanism is protected from soiling
Huge cost savings by dispensing with expensive special clamping jaws
Ideal true running properties
To purchase, or for more information
How it works

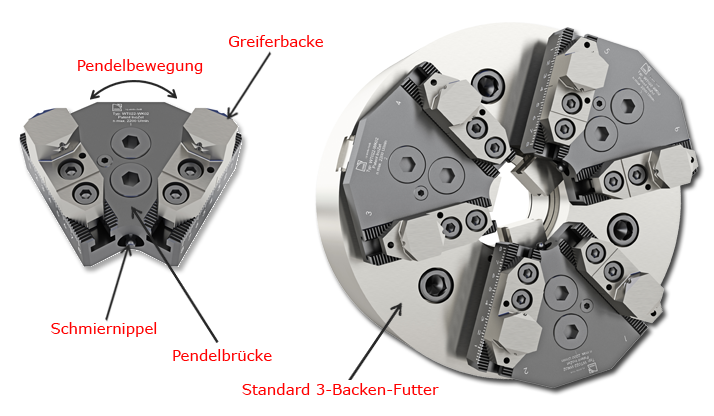

InoZet® pendulum bridges are fitted on the base jaws of the existing chuck. The pendulum mechanism gives the bridge a compensating effect.
State of the art
At present, pendulum jaws are used for 6-point clamping on three-jaw chucks. However, these pendulum jaws come with essential disadvantages.
Soiling of the pendulum mechanism (pendulum bolts) is just one of the problems, as it annuls the pendulum effect so that compensating clamping is no longer warranted.
Another problem is that the geometric shape of the pendulum jaws only allow a very limited clamping range. Therefore several sets of pendulum jaws are needed to cover the full clamping range.
As an alternative to 3-jaw chucks with pendulum jaws, costly 6-jaw chucks are used.
The use of a 6-jaw chuck only makes sense when it is a compensating chuck.
Areas of application
Is mainly used for clamping of:
Deformation-sensitive raw parts
Out-of-round parts
Parts that are deformed after thermal treatment
Standard InoZet® pendulum bridges are available for chuck sizes from 210 to 1250 mm.

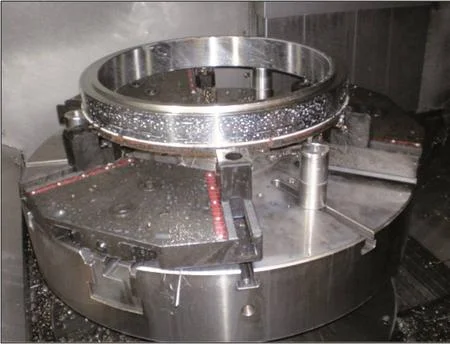

The flexibility of the clamping system allows the use of InoZet® both for clamping blanks and machined parts with external and internal clamping.
